美国费希尔FISHER

费希尔133L-12新编码133-1065-10867直接作用式减压阀 库存现货

费希尔133L-12新编码133-1065-10867直接作用式减压阀 库存现货

品牌:美国fisher费希尔

型号:133L-12

新编码:133-1065-10867

连接方式:180°法兰

口径尺寸:DN50

进口压力:可达60PSI

出口压力:0.75-2PSI

阀体材质:铸铁

单台重量:19kg

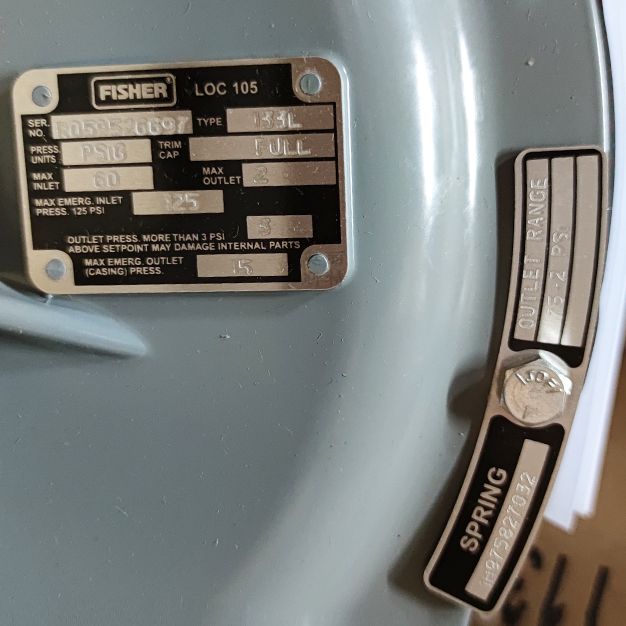

铭牌信息:

                                         FISHER   LOC 105

                                        SER  R059526697 TYPE  133L

                                        NO

                                        PRESS  PSIG              TRIM  FULL

                                        UNITS         CAP

                                        MAX   60                        MAX      2

                                        INLET         OUTLET

                                        MAX EMERG.INLET  125

                                        PRESS.125 PSI



                                        OUTLET PRESS.MORE THAN 3 PSI  3

                                        ABOVE SETPOINT MAY DAMAGE INTERNAL PARTS

                                        MAX EMERG.OUTLET  15

                                        (CASING)PRESS.







                                        SPRING     OUTLET RANGE

                                        1H975827032       .75-2 PSI

如您需要更多产品资料,请咨询我司客服人员(15876552411)索取相关电子资料
