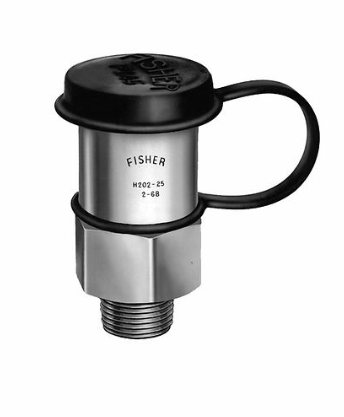

H200 系列弹出式泄压阀是一款直接作用式泄压阀，带有预先安装及固定的弹簧挡圈。 当入口气体压力超出弹簧设定值时，提升组件和阀瓣组件将被推离阀孔。 H200 系列弹出式泄压阀操作简单，弹簧设置选项广泛，可用于可以向大气排放气体且可以容忍泄压操作的应用场合。 农场龙头设备是其常见的应用环境之一。美国FISHER费希尔正规签约代理商15013369520/谢

H200 Series pop relief valves are direct-operated relief valves with preset and pinned spring retainers. When the inlet gas pressure increases above the spring setting, the poppet and disk assembly is pushed away from the orifice. With this simple operation and wide spring setting selection, the H200 Series Pop relief valves may be used where venting to atmosphere is acceptable and where some pressure relieving tolerance is acceptable. A common application is on farm tap installations.

H200放散阀功能特点：

结构节省空间

经济实惠

耐用

保护帽

Features

Space-Saving Construction

Economical

Durable

Protective Cap

H200放散阀规格参数:

全开尺寸系数

Cg：405

允许的最大泄压（入口）压力

400 psig / 27.6 bar

固定的释放压力

25 至 300 psig / 1.7 至 20.7 bar 之间的 12 种设置

可用组态和端部连接方式

H202 型：NPS 3/4、NPT
H203 型：NPS 1、NPT

温度适用范围

-20° 至 160°F / -29° 至 71°C

Specifications

Wide-Open Sizing Coefficient

Cg: 405

Maximum Allowable Relief (Inlet) Pressure

400 psig / 27,6 bar

Fixed Relief Pressures

25 to 300 psig / 1,7 to 20,7 bar with 12 settings

Available Configurations and End Connection Styles

Type H202: NPS 3/4, NPT
Type H203: NPS 1, NPT

Temperature Capabilities

-20° to 160°F / -29° to 71°C

其他技术数据

如需其他技术信息，请联系签约代理商谢工15013369520
